MDPE Gas Pipe

Name: MDPE Gas Pipe
Brand: ELEGANT POLYMERS
Price: 12.0 INR
Availability: InStock

Price 12.0 INR/ Meter

Get a Price/Quote

MDPE Gas Pipe Specification

Dimension (L*W*H)
16mm to 630mm Millimeter (mm)

Working Presssure
2 kg/cm2 TO 20kg/cm2

Fittings
Couplings, Flanges, Caps Nipples, Valves, Elbows, Reducers, Tees

Pipe Type
PIPE

Application
Gas Pipeline

Shape
Round

Usage
Gas pipeline

Diameter
16mm To 630mm Millimeter (mm)

Corrosion Resistant
Yes

Pressure
2.5 kg/cm2 to 20 Kg/cm2 kgf/cm2

Pressure Ratings
2 kg/cm2 TO 20kg/cm2

Material Grade
PE63, PE80, PE100

Life Span
25 yrs

Material
PE

Product Type
MDPE PIPE

Standard
ISO

Connection Type
Socket Fusion

Length
6/12/COIL Meter (m)

Thickness
1.90mm to 115.60mm Millimeter (mm)

Weight
1kg to 170kg Kilograms (kg)

Color
Orange, Black

Warranty
5 yrs

MDPE Gas Pipe Trade Information

Minimum Order Quantity
500 Meter

FOB Port
Mundra Port

Payment Terms
Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C)

Supply Ability
800000 Per Year

Delivery Time
1 Week

Sample Available
No

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Packaging Details

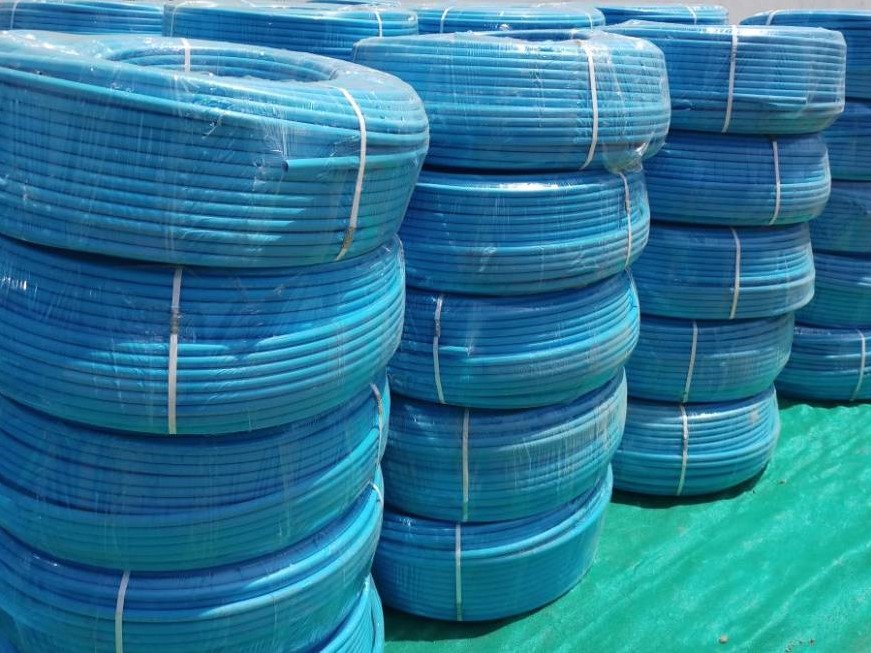

Packing details for Elegant HDPE (High-Density Polyethylene) pipes can vary depending on the pipe size, length, pressure rating, and manufacturer. However, there are standard practices commonly followed in the industry to ensure safe transportation and storage. HDPE Pipe Packing Details: 1. Bundling: Small diameter pipes (e.g., 20mm to 110mm) are usually bundled in coils. Common coil lengths: 50m, 100m, 200m, up to 500m depending on the diameter. Bundles are tied using plastic straps or polypropylene ropes. Wrapped in LDPE stretch film or woven bags to protect from UV and damage. Larger diameter pipes (e.g., >110mm) are straight lengths. Typically 6m or 12m straight pipes. Packed in bundles of several pipes per bundle (number depends on pipe diameter). Bundles are secured with nylon or metal straps. Ends are often capped with plastic end caps to prevent dust and damage. 2. Wooden Supports or Pallets: For export or long-distance transportation, wooden crates or pallets may be used to stabilize the bundles. Blocking and bracing is done to avoid shifting during transit. 3. Marking and Labeling: Each bundle or coil is labeled with: Pipe size (OD, wall thickness) Pressure rating (PN2.5, PN10, PN16) Material grade ( PE63, PE100, PE80) Standard followed (ISO 4427, DIN 8074) Manufacturing date, batch number, and manufacturer's name/logo 4. Protection: UV-resistant wrapping (especially for outdoor storage). Pipe ends sealed or capped to avoid contamination. 5. Container/Truck Loading: Pipes are stacked carefully in layers to optimize space. Heavy pipes at the bottom, lighter on top. Use of dunnage to separate layers and avoid deformation.

Main Export Market(s)
Western Europe, Middle East, Africa, Central America, North America, South America, Eastern Europe, Asia, Australia

Main Domestic Market
All India

Certifications
IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427.

About MDPE Gas Pipe

We are renowned for manufacturing and exporting an excellent range of MDPE Gas Pipe. Our comprehensive range of comes in both straight length pipe and coil lengths. Easy to install by heat fusion or mechanical fittings, these gas pipes are wisely made in confirmation with the industry standards using supreme quality medium- density polyethylene. Highly suitable for use in multiple applications for gas distribution, these pipes ensure significant cost savings while providing long-lasting performance. This MDPE Gas Pipe is best suited for all natural and manufactured gases.

Features:

Superior resistance to most solvents and chemicals
Excellent weathering properties
Sturdy in nature

Specification:

Nominal Outer Dia.	Minimum Wall Thickness (All Sizes in MM)
(MM)	Sdr 17.6	sdr 13.6	sdr 11.0	sdr 9.0
16	2.3	2.3	3	3
20	2.3	2.3	3	3
25	2.3	2.3	3	3
32	2.3	2.3	3	3.6
40	2.3	3	3.7	4.5
50	2.9	3.7	4.6	5.6
63	3.6	4.7	5.8	7.1
75	4.3	5.5	6.8	8.4
