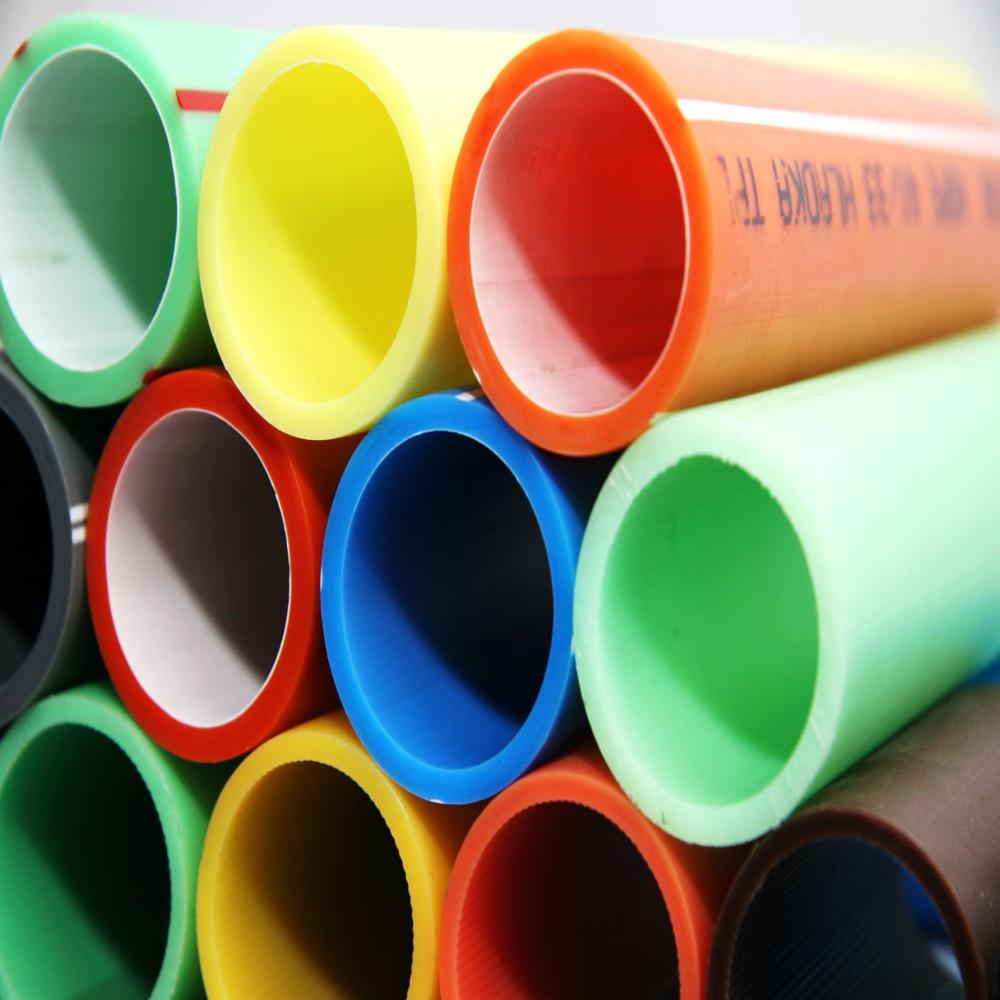

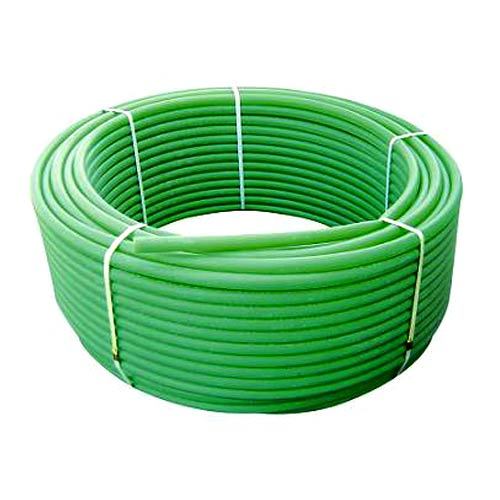

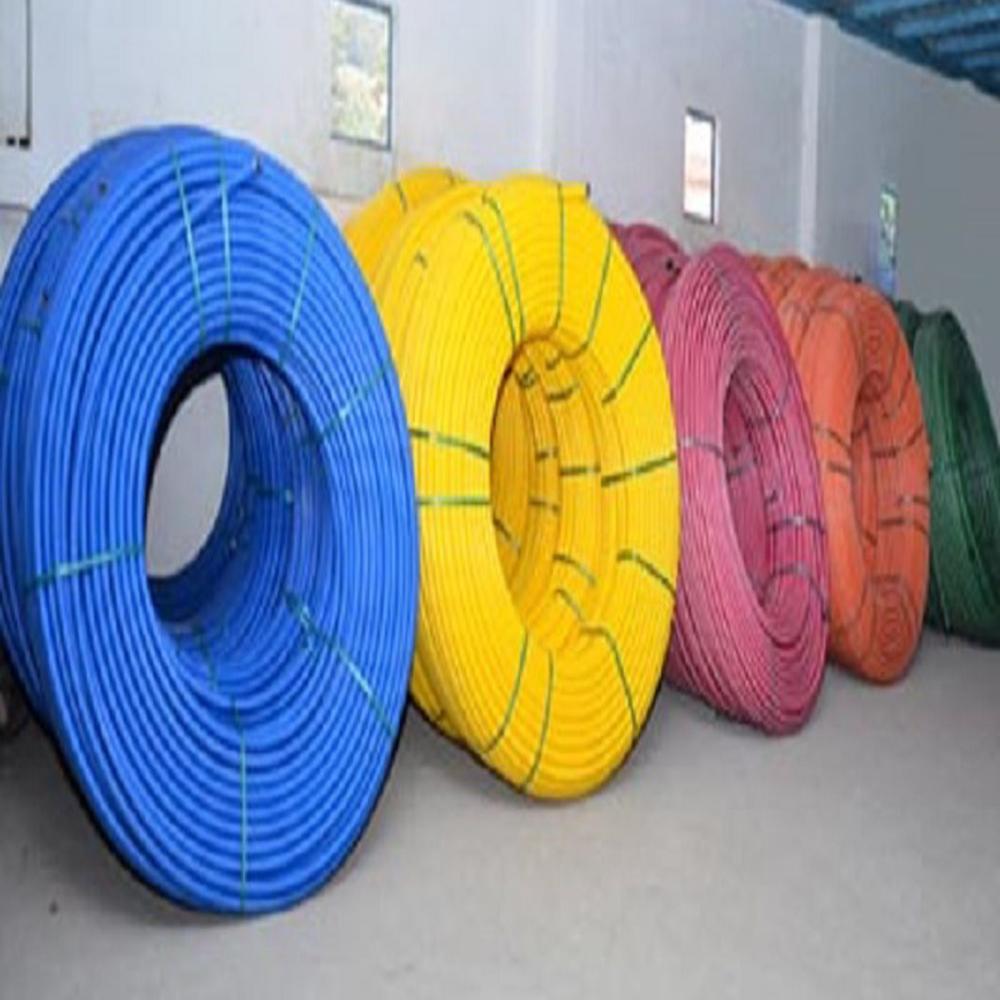

HDPE Cable Duct Pipe

Name: HDPE Cable Duct Pipe
Brand: ELEGANT POLYMERS
Price: 50.0 INR
Availability: InStock

50.0 INR/Meter

Get a Price/Quote

Product Details:

Diameter 16mm To 630mm Millimeter (mm)
Corrosion Resistant Yes
Material Grade PE63, PE80, PE100
Pressure 2 kg/cm2 To 20kg/cm2 kgf/cm2
Usage Solar Project & Electric Project
Shape Round
Application Solar Project & Electric Project
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HDPE Cable Duct Pipe Price And Quantity

Minimum Order Quantity 50 Meter
Price 50.0 INR/Meter

HDPE Cable Duct Pipe Product Specifications

Connection Type Butt Fusion
Standard IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427
Usage Solar Project & Electric Project
Color Black , Orange , Yellow
Shape Round
Application Solar Project & Electric Project
Pressure Ratings 2 kg/cm2 To 20 kg/cm2
Diameter 16mm To 630mm Millimeter (mm)
Corrosion Resistant Yes
Product Type HDPE CABLE PIPE
Pressure 2 kg/cm2 To 20kg/cm2 kgf/cm2
Material Grade PE63, PE80, PE100
Pipe Type Round
Material HDPE
Warranty 5 years
Working Presssure 2 kg/cm2 To 20 kg/cm2
Length 6/12 coil Meter (m)
Life Span 25 years

HDPE Cable Duct Pipe Trade Information

FOB Port Mundra Port
Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
Supply Ability 800000 Meter Per Year
Delivery Time 1 Week
Sample Available No
Sample Policy Free samples are available
Main Domestic Market All India

Product Description

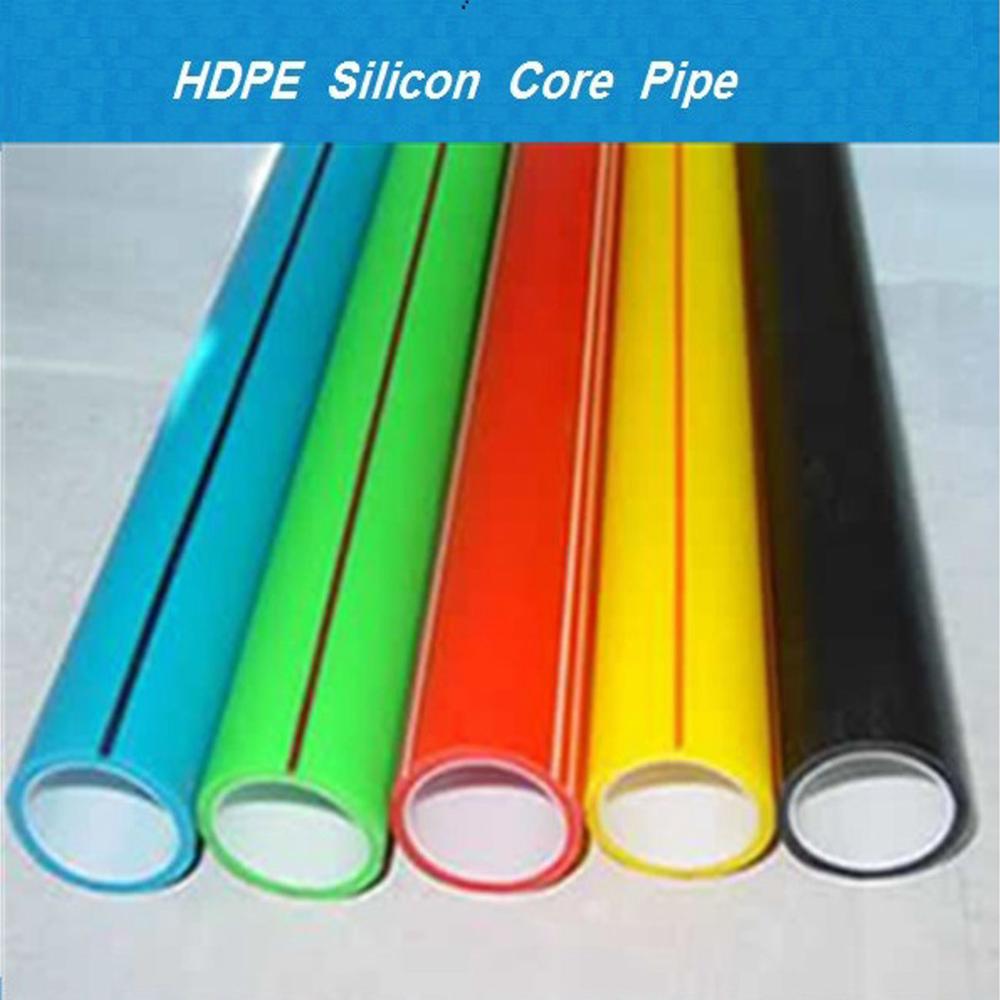

HDPE PLB Duct Pipe:Elegant PLB Duct Pipeis extruded from selected high quality virgin HDPE material and co-extruded with solid Silicon permanent lubricant that is distributed uniformly along the entire inner surface of the duct providing a low friction smooth surface for easy cable drawing or blowing and reducing Internal Co-efficient of Friction (ICF) between Fiber Optic cable & pipe. The outer HDPE shell of HDPE PLB Duct Pipe makes the pipe more tough and durable and enables the duct to withstand the pressure during HSAB of cable as well as retains the roundness under soil pressure and traffic load. Elegant PLB Duct Pipe conform to BSNL specification. Pipes also contain co-extruded 4 eqvi-spaced continuous longitudinal strip of minimum 3mm width. With installed production capacity of 6000MTPA for HDPE PLB Pipes from 20mm to 630mm in 2.5kg/cm2 to 16kg/cm2 we are committed to just in timesupplyinghigh quality products to our customers.

Application:

Telecommunication

Computer Network

Automatic Signaling

Railways Information Network.

Highways

Cable Service Providers,

Broad Band networks

Electric cable installation etc.

Advantages:

Reduction of stress on cable during installation.

Impact Resistance.

Ultraviolet (UV) Resistance.

High Enviroment Stress Crack Resistance (ESCR).

Installation of Longer lengths made feasible.

Negotiations of cable movement through bends and deflections are easier.

Reduction of number of joints and minimizes number of splices.

Faster and easy installation of cable with lesser man power.

Reduction of overall cost of installation, maintenance and future upgrades.

Dimensions:

S.NO.	DUCT SIZE	OUTER DIA	OVALITY (MAX)	WALL THICKNESS	STANDARD LENGTH
1	32/26	320.3	1.3	3.00.2	250/500/1000 Mtrs.
2	40/33	400.4	1.4	3.50.2	250/500/1000 Mtrs.
3	50/42	500.5	1.4	4.00.3	250/500/1000 Mtrs.
4	63/57	630.6	1.5	3.60.6	6/12/50/100 Mtrs.
5	75/65	750.7	1.6	4.30.7	6/12/50/100 Mtrs.
6	90/79	900.9	1.8	5.10.8	6/12/50/100 Mtrs.
7	110/96	1101.0	2.2	6.31.0	6/12/50/100 Mtrs.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'HDPE Pipe' category

HDPE leach field pipe Price : 40.0 INR/Meter Minimum Order Quantity : 50000 Warranty : 5 years Material : HDPE Standard : IS 4984:2016, IS 14333:1996, IS 14151(Pt2):2008, DIN 8074, DIN 8075, ISO 4427 Color : Black Product Type : HDPE Perforated Pipe Shape : Round Diameter : 20mm to 630mm Millimeter (mm) Application : Golf courses , Sub surface drainage system for roads/highways Length : 6/12 Coil Meter (m) Life Span : 15 years Pressure : 2.5kg/cm2 to 16kg/cm2 kgf/cm2 Fittings : Flanges Working Presssure : 2.5kg/cm2 to 16kg/cm2 Pipe Type : Perforated Pipe Corrosion Resistant : Yes Material Grade : PE63 , PE80 , PE100 Connection Type : Butt Fusion Pressure Ratings : 2.5kg/cm2 to 16kg/cm2 Feature : Ultraviolet (UV) Resistance, Impact Resistance Thickness : 20mm to 630mm Millimeter (mm) Dimension (L*W*H) : 20mm to 630mm Millimeter (mm) Weight : 50 Kilograms (kg) Usage : Golf courses , Sub surface drainage system for roads/highways Capacity : 700 Kg/day

Send Inquiry

HDPE pipe for industrial use Price : 38 INR/Meter Minimum Order Quantity : 7500000 Warranty : 5 years Material : HDPE Standard : IS 4984:2016, IS 14333:1996, IS 14151(Pt2):2008, DIN 8074, DIN 8075, ISO 4427 Color : Black Product Type : HDPE Industrial Use Shape : Round Diameter : 16mm To 630mm Millimeter (mm) Application : water supply, wastewater management, sewage systems, chemical transfer Length : 6/12 Coil Meter (m) Life Span : 15 years Pressure : 2 kg/cm2 TO 20 kg/cm2 kgf/cm2 Fittings : Elbows, Tees, Reducers, Couplings, Flanges, Caps Nipples, Valves Working Presssure : 2 kg/cm2 TO 20 kg/cm2 Pipe Type : Industrial Pipe Corrosion Resistant : Yes Material Grade : PE63 / PE80 / PE100 Connection Type : Butt Fusion Pressure Ratings : 2 kg/cm2 TO 20 kg/cm2 Thickness : 6 Meter Weight : 50 Kilograms (kg) Usage : water supply, wastewater management, sewage systems, chemical transfer Capacity : 500 Kg/hr

Send Inquiry

HDPE Underground pipe Price : 50.0 INR/Meter Minimum Order Quantity : 500 Warranty : 4 yrs Material : Plastic Standard : IS 4984:2016, IS 14333:1996, IS 14151(Pt2):2008, DIN 8074, DIN 8075, ISO 4427 Color : Black Product Type : HDPE UNDER GROUND PIPE Shape : Round Diameter : 16mm to 360mm Millimeter (mm) Application : Underground use, Water supply use, Dranainge use under ground Length : 6/12 Coil Meter (m) Life Span : 50 yrs Pressure : 2.5 kg. cm2/ 20 kg. cm2 kgf/cm2 Fittings : Tees, Flanges, Reducers, Couplings, Caps Nipples, Valves, Elbows Working Presssure : 2.5 kg. cm2/ 20 kg. cm2 Pipe Type : Round Corrosion Resistant : yes Material Grade : PE63 , PE80, PE100 Pressure Ratings : 2.5 kg. cm2/ 20 kg. cm2 Feature : UV Resitsance , Crush Resistance , Heavy Qoulity Thickness : 16mm to 630mm Millimeter (mm) Dimension (L*W*H) : 16mm to 630mm Millimeter (mm) Weight : 1 kg. to 170 kg. Kilograms (kg)

Send Inquiry

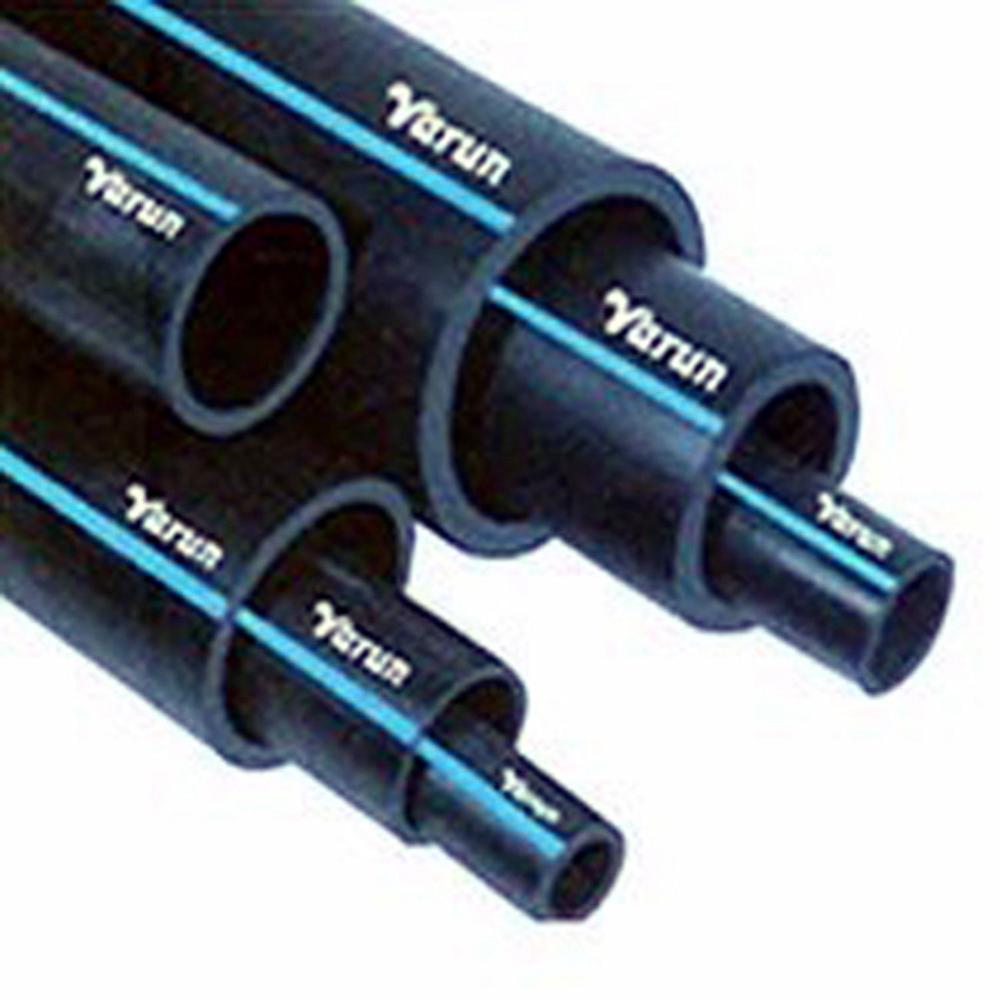

HDPE PIPE Price : 10.0 INR/Meter Minimum Order Quantity : 500 Warranty : 5 yrs Material : HDPE Standard : IS 4984:2016, IS 14333:1996, IS 14151(Pt2):2008, DIN 8074, DIN 8075, ISO 4427 Color : Black Product Type : HDPE Pipe Shape : Round Diameter : 16mm to 630mm Millimeter (mm) Application : Sewerage and Drainage systems , Industrial effluent disposal systems , Cable Ducting , Portable water supply , Irrigation/ Agriculture , Sprinkler System , Gas Distribution Length : 6/12/Coils Meter (m) Life Span : 50 years Pressure : 2.5 to 20 kgf/cm2 Fittings : Elbows, Reducers, Couplings, Flanges, Caps Nipples, Tees, Valves Working Presssure : 2.5 kg. to 20kg. Pipe Type : Round Corrosion Resistant : yes Material Grade : PE63, PE80, PE100 Connection Type : Butt Fusion Pressure Ratings : 2.5 k.g. to 20 k.g. Feature : High Tensile Strength & High Stress Crack Resistance prevents inching growth of cracks. High resistance to UV & direct sunlight , Leak proof joints. Light weight and flexible. Easy to install and transport , Excellent flow characteristics due to smooth inner surface hence low frictional loss , Weather Resistant , Excellent corrosion, abrasion and chemical resistance. Inert to most acidic and alkaline solutions Dimension (L*W*H) : 16mm to 630mm Millimeter (mm)
