Send InquiryHDPE Underground pipe
Price 50.0 INR/ Meter
HDPE Underground pipe Specification
- Dimension (L*W*H)
- 16mm to 630mm Millimeter (mm)
- Feature
- UV Resitsance , Crush Resistance , Heavy Qoulity
- Working Presssure
- 2.5 kg. cm2/ 20 kg. cm2
- Pressure Ratings
- 2.5 kg. cm2/ 20 kg. cm2
- Fittings
- Tees, Flanges, Reducers, Couplings, Caps Nipples, Valves, Elbows
- Diameter
- 16mm to 360mm Millimeter (mm)
- Shape
- Round
- Corrosion Resistant
- yes
- Pressure
- 2.5 kg. cm2/ 20 kg. cm2 kgf/cm2
- Life Span
- 50 yrs
- Port Size
- 16mm to 360mm
- Material
- Plastic
- Application
- Underground use, Water supply use, Dranainge use under ground
- Pipe Type
- Round
- Material Grade
- PE63 , PE80, PE100
- Product Type
- HDPE UNDER GROUND PIPE
- Standard
- IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427
- Length
- 6/12 Coil Meter (m)
- Thickness
- 16mm to 630mm Millimeter (mm)
- Weight
- 1 kg. to 170 kg. Kilograms (kg)
- Color
- Black
- Warranty
- 4 yrs
HDPE Underground pipe Trade Information
- Minimum Order Quantity
- 500 Meter
- FOB Port
- mundra port
- Payment Terms
- Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash Advance (CA)
- Supply Ability
- 80000 Per Year
- Delivery Time
- 1 Week
- Sample Available
- No
- Sample Policy
- Free samples available with shipping and taxes paid by the buyer
- Main Export Market(s)
- Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia
- Main Domestic Market
- All India
- Certifications
- IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427
About HDPE Underground pipe

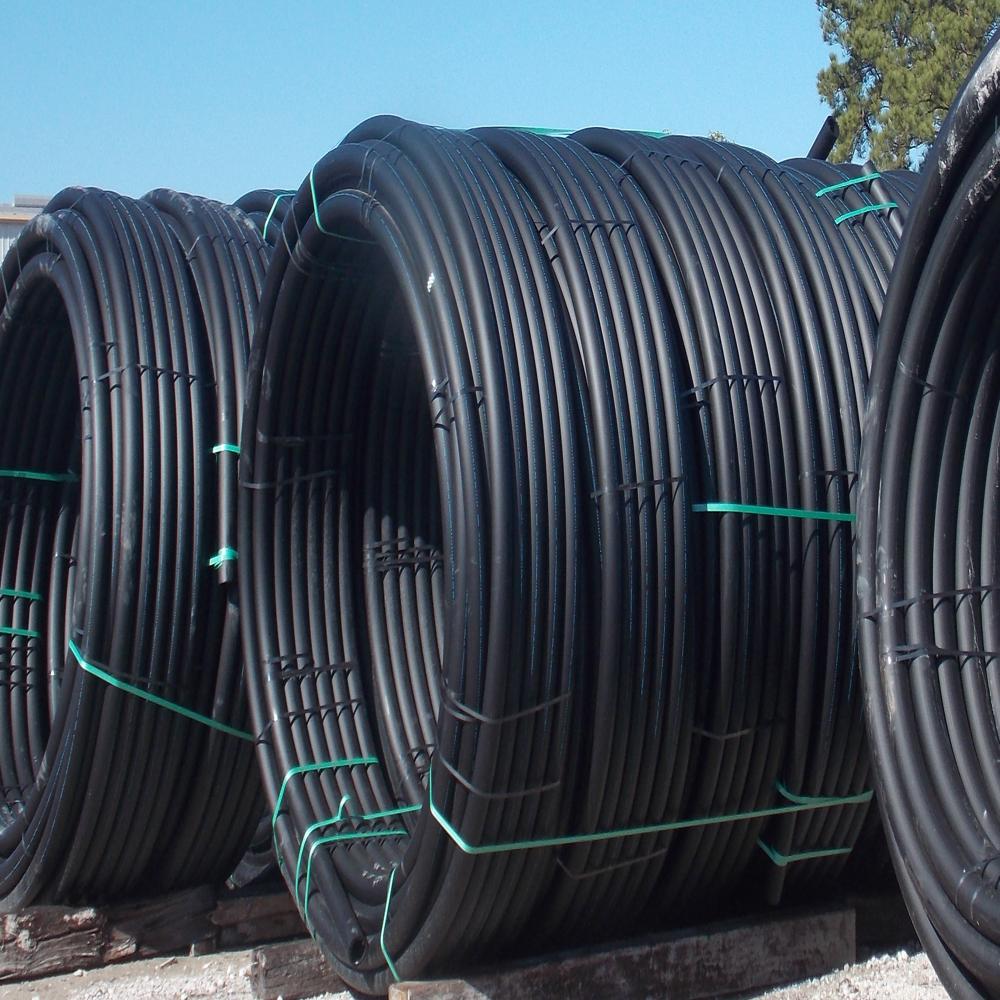

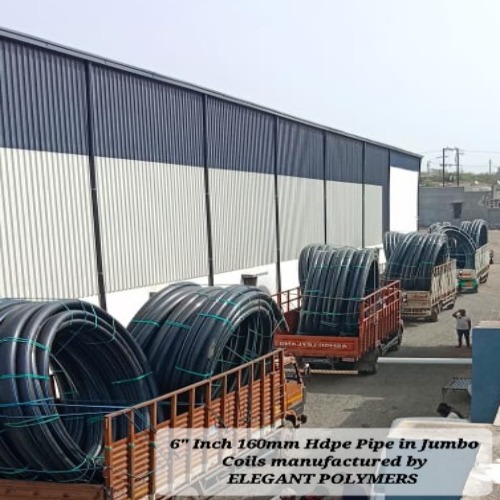

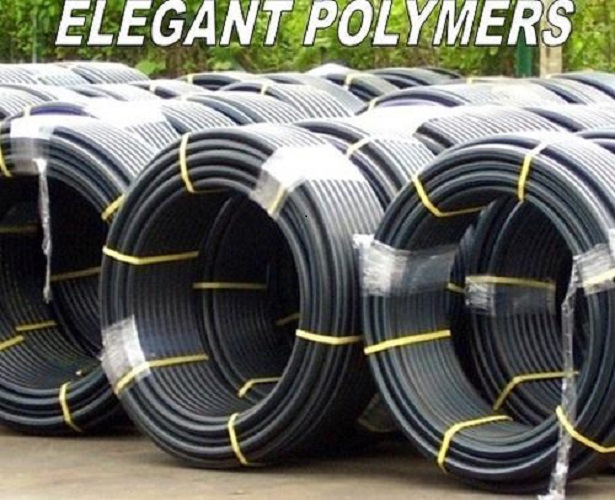

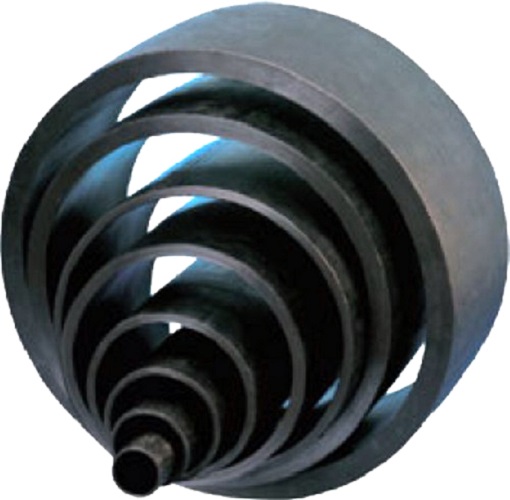

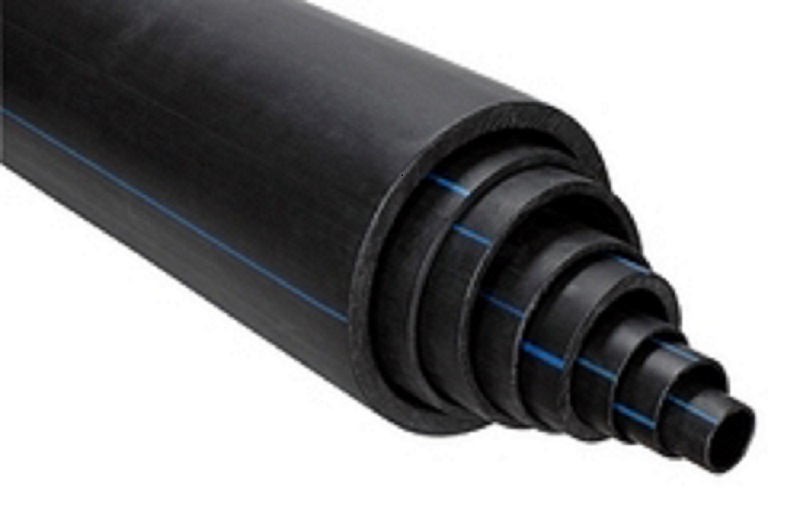

Elegant Underground HDPE Pipe
Product Description
Elegant HDPE Underground Pipes (High-Density Polyethylene Pipes) are designed for high-performance underground piping systems in water supply, sewage, irrigation, drainage, and cable ducting applications. Manufactured using premium-grade virgin PE63, PE80, or PE100 raw material, these pipes are known for their durability, corrosion resistance, and flexibility, making them ideal for long-term underground installations.
HDPE pipes are non-metallic, hence completely immune to rust, chemical attack, and electrochemical corrosion, ensuring a lifespan of over 50 years under standard conditions. With leak-proof butt fusion or electrofusion joints, they are especially suitable for water-tight systems in harsh or shifting soil environments.
Key Technical Specifications:
- Material Grade: PE63 / PE80 / PE100
- Conforming Standard: IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427
- Sizes Available: 20 mm to 630 mm OD
- Pressure Ratings: PN 2.5 to PN 20 (SDR 33 to SDR 7.4)
- Colors: Black with optional blue/yellow/Brown (application dependent)
- Jointing Method: Butt Fusion, Electrofusion, Flanged Joint, Compression Fittings, Socket Type.
Applications:
- Potable Water Distribution Systems
- Underground Sewerage and Drainage Networks
- Agricultural & Drip Irrigation Pipelines
- Cable & Telecom Ducting
- Industrial Effluent & Slurry Disposal
- Gas Transmission (yellow-striped pipes)
Features:
- Leak-Free: Fusion-welded joints for zero leakage
- Corrosion & Chemical Resistant: Ideal for aggressive soil and waste environments
- Lightweight: Easier transport and installation vs. metal/concrete pipes
- Flexible & Impact Resistant: Withstands soil movement and traffic loads
- Eco-Friendly: Fully recyclable and non-toxic
- Low Maintenance: Long service life with minimal upkeep
- Noise & Vibration Resistant: Suitable for urban underground utilities.
3. Mechanical & Physical Properties
|
Property |
Typical Value |
|
Density |
0.941 to 0.959 g/cm |
|
Tensile Strength at Yield |
19 MPa |
|
Elongation at Break |
> 350% |
|
Flexural Modulus |
6001,500 MPa (depending on grade) |
|
Impact Strength |
High passes falling weight test |
|
Thermal Conductivity |
0.4 W/mK |
|
Maximum Operating Temperature |
80C |
|
Minimum Operating Temperature |
40C |
|
UV Resistance |
UV Stabilized (Carbon Black content 2%) |
|
Life Expectancy |
50 years (under normal operating conditions) |
. Dimensional Specifications
| Outer Diameter (OD) | 20 mm to 630 mm (customizable) |
| Length | 6 m, 12 m, or coils up to 300 m (for <160 mm OD) |
| Wall Thickness | As per SDR rating (SDR 7.4 to SDR 33) |
| Pressure Ratings | PN 2.5, PN 4, PN 6, PN 8, PN 10, PN 12.5, PN 16, PN 20 |
Technical Details
