Home » Products » Cable Duct Pipes » HDPE PLB Cable Duct Coil

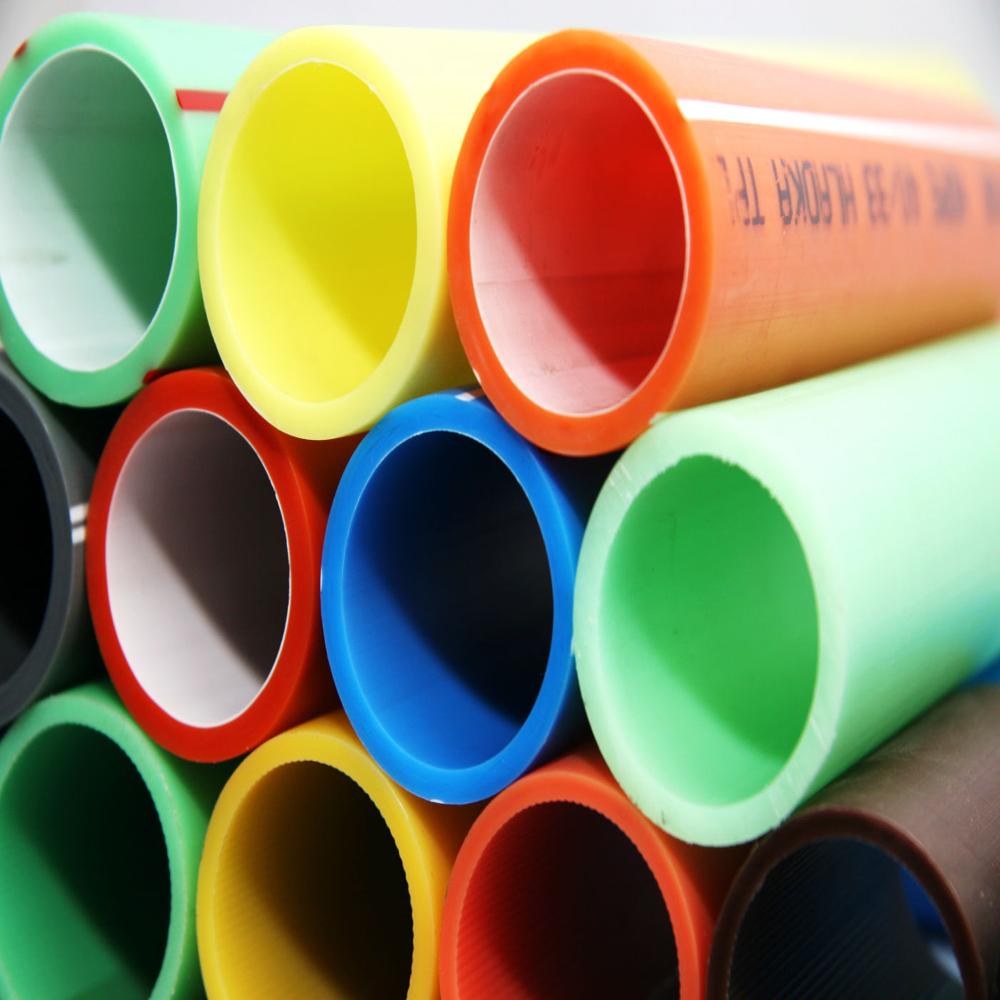

HDPE PLB Cable Duct Coil

HDPE PLB Cable Duct Coil
Product Code : CDC
Brand Name : VARUN & wATERMAN
Price And Quantity
  • Minimum Order Quantity
  • 5000
  • Unit of Measure
  • Meter/Meters
  • Price Range
  • 25 - 90 INR
Product Specifications
  • Pressure
  • 2.5 to 16 kgf/cm2
  • Application
  • Structure Pipe, Hydraulic Pipe, Oil Pipe, Chemical Fertilizer Pipe, Fluid Pipe, Boiler Pipe, Gas Pipe, Drill Pipe, Architectural, Construction
  • Feature
  • Reduction of stress on cable during installation. Impact Resistance. Ultraviolet (UV) Resistance. High Enviroment Stress Crack Resistance (ESCR). Installation of Longer lengths made feasible. Negotiations of cable movement through bends and deflections are easier. Reduction of number of joints and minimizes number of splices. Faster and easy installation of cable with lesser man power. Reduction of overall cost of installation, maintenance and future upgrades
  • Life Span
  • 25yrs
  • Product Type
  • PLB CABLE DUCT PIPE
  • Material
  • HDPE
  • Type
  • Seamless
  • Shape
  • Round
  • Connection Type
  • Socket Joint
  • Length
  • 6/12/25/50/100/250/500 Meter (m)
  • Diameter
  • 12 to 315 Millimeter (mm)
  • Color
  • Orange, Green, Red, Black
  • Warranty
  • 5 yrs
Product Description

HDPE PLB Duct Pipe:
Elegant PLB Duct Pipe is extruded from selected high quality virgin HDPE material and co-extruded with solid Silicon permanent lubricant that is distributed uniformly along the entire inner surface of the duct providing a low friction smooth surface for easy cable drawing or blowing and reducing Interanl Co-efficient of Friction (ICF) between Fiber Optic cable & pipe. The outer HDPE shell makes the pipe more tough and durable and enables the duct to withstand the pressure during HSAB of cable as well as retains the roundness under soil pressure and traffic load. Elegant PLB Duct Pipe conform to BSNL specification. Pipes also contain co-extruded 4 eqvi-spaced continuous longitudinal strip of minimum 3mm width.



Application:

  • Telecommunication
  • Computer Network
  • Automatic Signaling
  • Railways Information Network.
  • Highways
  • Cable Service Providers,
  • Broad Band networks
  • Electric cable installation etc.



Advantages:

  • Reduction of stress on cable during installation.
  • Impact Resistance.
  • Ultraviolet (UV) Resistance.
  • High Enviroment Stress Crack Resistance (ESCR).
  • Installation of Longer lengths made feasible.
  • Negotiations of cable movement through bends and deflections are easier.
  • Reduction of number of joints and minimizes number of splices.
  • Faster and easy installation of cable with lesser man power.
  • Reduction of overall cost of installation, maintenance and future upgrades.







Dimensions:

S.NO.

DUCT SIZE

OUTER DIA

OVALITY (MAX)

WALL THICKNESS

STANDARD LENGTH

1

32/26

32±0.3

1.3

3.0±0.2

250/500/1000 Mtrs.

2

40/33

40±0.4

1.4

3.5±0.2

250/500/1000 Mtrs.

3

50/42

50±0.5

1.4

4.0±0.3

250/500/1000 Mtrs.

4

63/57

63±0.6

1.5

3.6±0.6

6/12/50/100 Mtrs.

5

75/65

75±0.7

1.6

4.3±0.7

6/12/50/100 Mtrs.

6

90/79

90±0.9

1.8

5.1±0.8

6/12/50/100 Mtrs.

7

110/96

110±1.0

2.2

6.3±1.0

6/12/50/100 Mtrs.





We are also dealing in HDPE Pipes, HDPE Coil, CABLE Duct Pipes, MDPE Pipes, PVC Pipes, Drip Irrigation System, Sprinkler Irrigation System, HDPE Pipe Fittings & Compression Pipe Fittings.

Trade Information
  • FOB Port
  • Mundra Port
  • Payment Terms
  • Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C)
  • Supply Ability
  • 6000 tonnes Per Year
  • Delivery Time
  • 15 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples are available
  • Main Export Market(s)
  • Asia, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • IS 4984:1995, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427
