Product Brochure

HDPE PIPE

Name: HDPE PIPE
Brand: ELEGANT POLYMERS
Price: 10.0 INR
Availability: InStock

10.0 INR/Meter

Get a Price/Quote

Product Details:

Application Sewerage and Drainage systems , Industrial effluent disposal systems , Cable Ducting , Portable water supply , Irrigation/ Agriculture , Sprinkler System , Gas Distribution
Life Span 50 years
Corrosion Resistant yes
Dimension (L*W*H) 16mm to 630mm Millimeter (mm)
Feature High Tensile Strength & High Stress Crack Resistance prevents inching growth of cracks. High resistance to UV & direct sunlight , Leak proof joints. Light weight and flexible. Easy to install and transport , Excellent flow characteristics due to smooth inner surface hence low frictional loss , Weather Resistant , Excellent corrosion, abrasion and chemical resistance. Inert to most acidic and alkaline solutions
Diameter 16mm to 630mm Millimeter (mm)
Pressure Ratings 2.5 k.g. to 20 k.g.
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HDPE PIPE Price And Quantity

Minimum Order Quantity 500 Meter

Price 10.0 INR/Meter

HDPE PIPE Product Specifications

Working Presssure 2.5 kg. to 20kg.

Pressure Ratings 2.5 k.g. to 20 k.g.

Pipe Type Round

Diameter 16mm to 630mm Millimeter (mm)

Shape Round

Fittings Elbows, Reducers, Couplings, Flanges, Caps Nipples, Tees, Valves

Dimension (L*W*H) 16mm to 630mm Millimeter (mm)

Feature High Tensile Strength & High Stress Crack Resistance prevents inching growth of cracks. High resistance to UV & direct sunlight , Leak proof joints. Light weight and flexible. Easy to install and transport , Excellent flow characteristics due to smooth inner surface hence low frictional loss , Weather Resistant , Excellent corrosion, abrasion and chemical resistance. Inert to most acidic and alkaline solutions

Standard IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427

Corrosion Resistant yes

Product Type HDPE Pipe

Material Grade PE63, PE80, PE100

Life Span 50 years

Application Sewerage and Drainage systems , Industrial effluent disposal systems , Cable Ducting , Portable water supply , Irrigation/ Agriculture , Sprinkler System , Gas Distribution

Pressure 2.5 to 20 kgf/cm2

Warranty 5 yrs

Color Black

Length 6/12/Coils Meter (m)

Connection Type Butt Fusion

Material HDPE

HDPE PIPE Trade Information

FOB Port Mundra

Payment Terms Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Cash Advance (CA), Cash in Advance (CID)

Supply Ability 6000 Meter Per Month

Delivery Time 1 Week

Sample Available No

Sample Policy Free samples are available

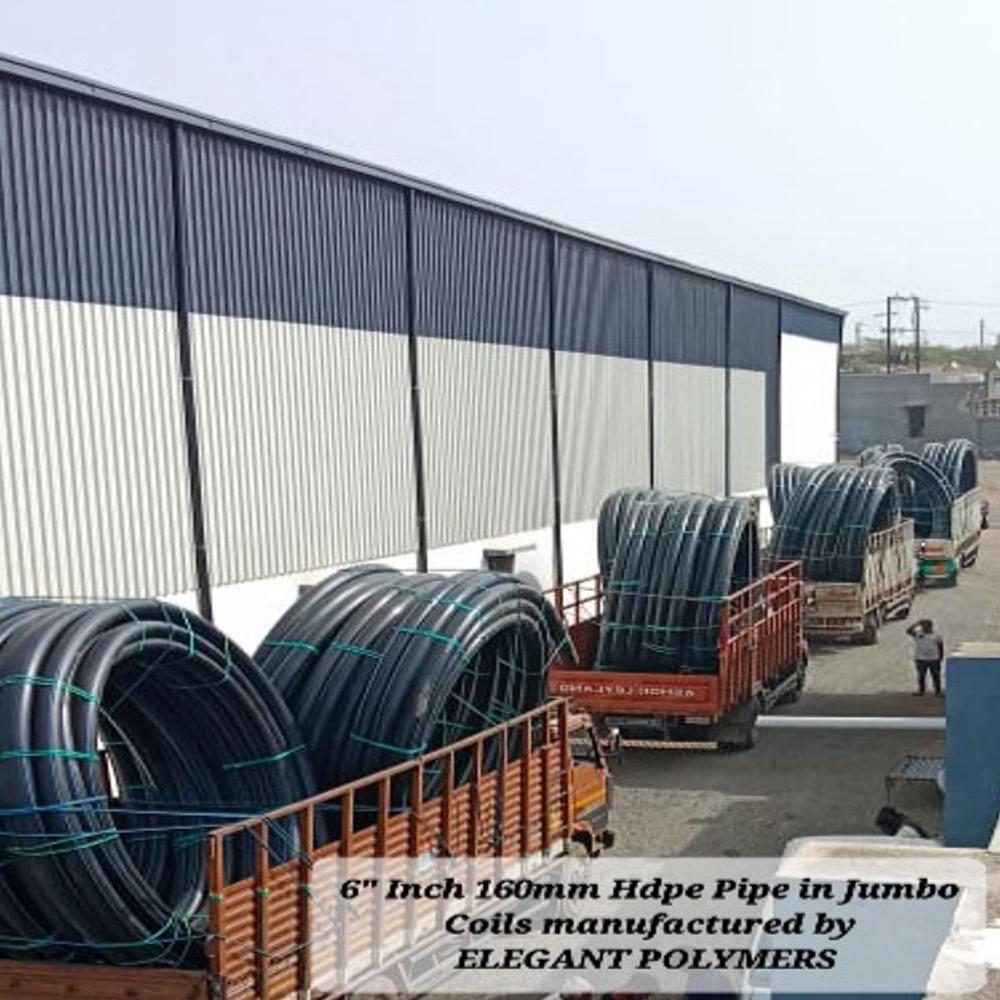

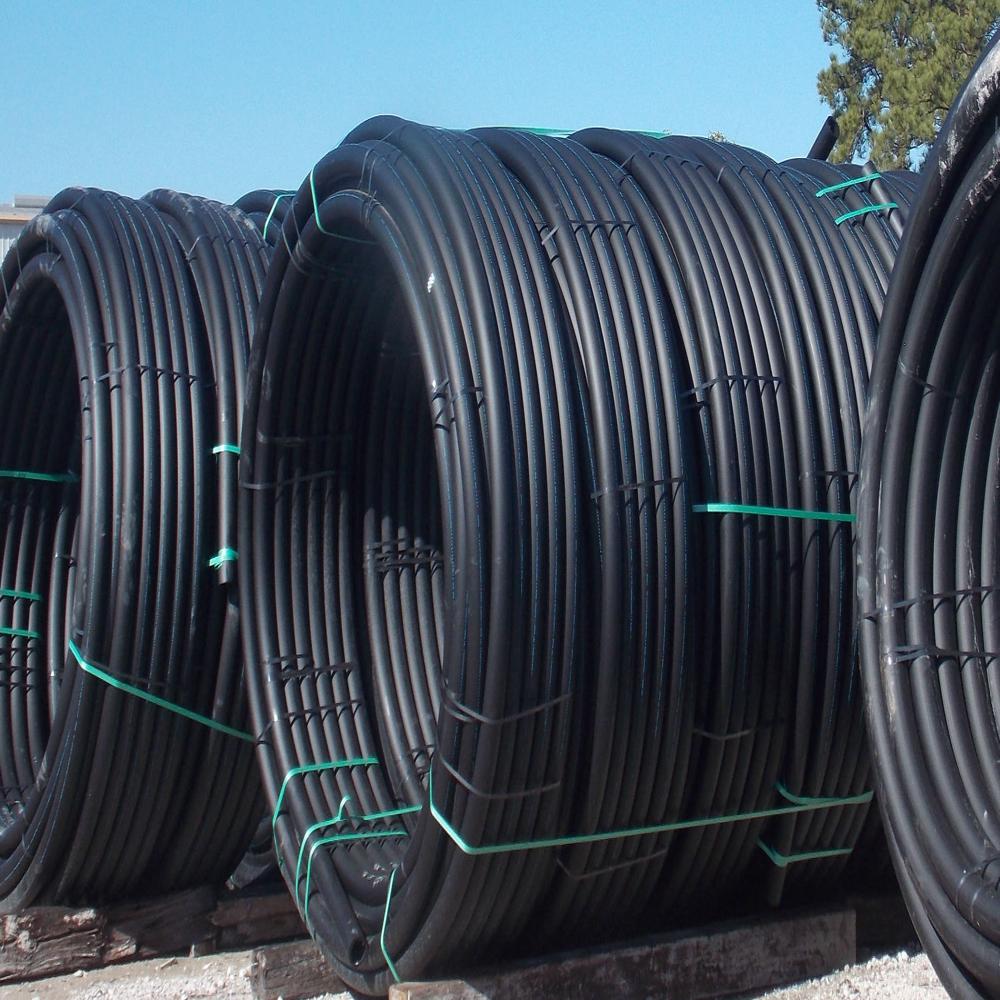

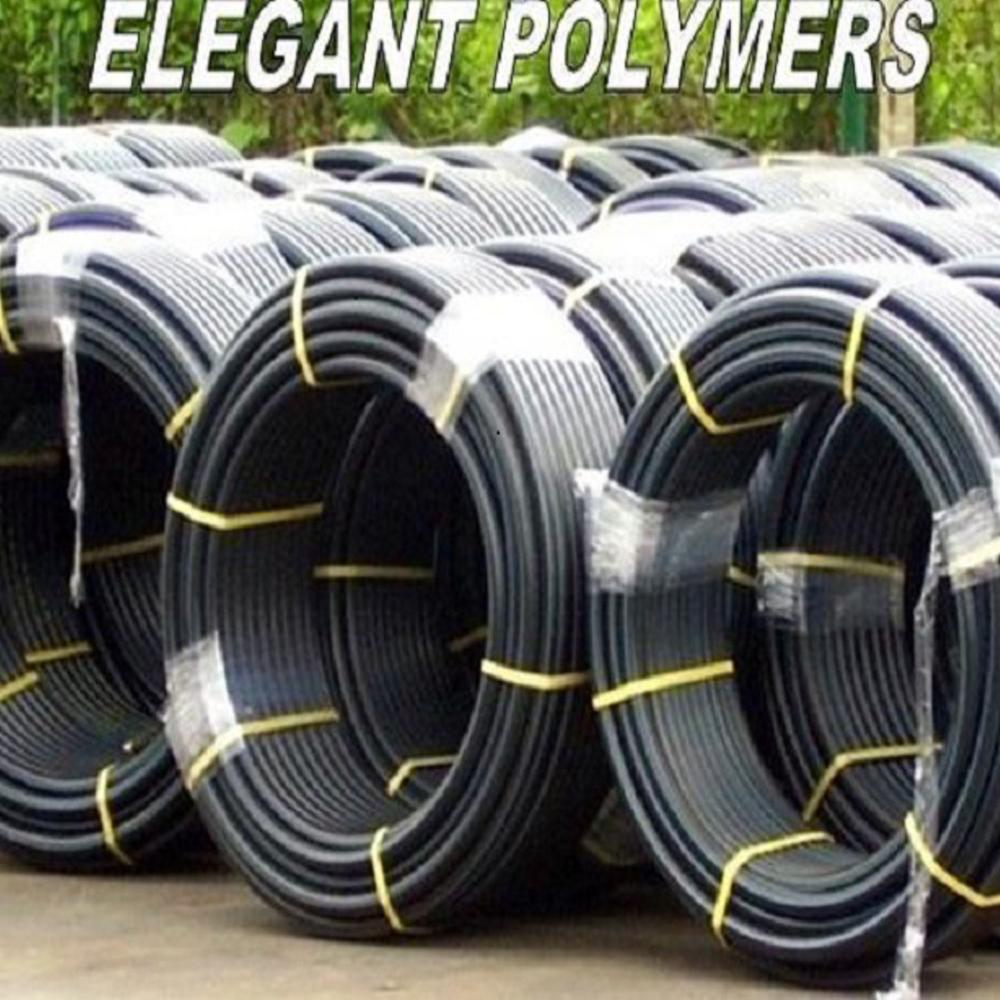

Packaging Details Packing details for Elegant HDPE (High-Density Polyethylene) pipes can vary depending on the pipe size, length, pressure rating, and manufacturer. However, there are standard practices commonly followed in the industry to ensure safe transportation and storage. HDPE Pipe Packing Details: 1. Bundling: Small diameter pipes (20mm to 110mm) are usually bundled in coils. Common coil lengths: 50m, 100m, 200m, up to 500m depending on the diameter. Bundles are tied using plastic straps or polypropylene ropes. Wrapped in LDPE stretch film or woven bags to protect from UV and damage. Larger diameter pipes (e.g., >110mm) are straight lengths. Typically 6m or 12m straight pipes. Packed in bundles of several pipes per bundle (number depends on pipe diameter). Bundles are secured with nylon or metal straps. Ends are often capped with plastic end caps to prevent dust and damage. 2. Wooden Supports or Pallets: For export or long-distance transportation, wooden crates or pallets may be used to stabilize the bundles. Blocking and bracing is done to avoid shifting during transit. 3. Marking and Labeling: Each bundle or coil is labeled with: Pipe size (OD, wall thickness) Pressure rating (PN2.5,PN10, PN16) Material grade (PE63, PE100, PE80) Standard followed ( ISO 4427, DIN 8074) Manufacturing date, batch number, and manufacturer's name/logo 4. Protection: UV-resistant wrapping (especially for outdoor storage). Pipe ends sealed or capped to avoid contamination. 5. Container/Truck Loading: Pipes are stacked carefully in layers to optimize space. Heavy pipes at the bottom, lighter on top. Use of dunnage to separate layers and avoid deformation.

Main Export Market(s) Africa, Asia, Middle East

Main Domestic Market All India

Certifications IS 4984:2016, IS 14333:1996, IS 14151(Pt-2):2008, DIN 8074, DIN 8075, ISO 4427

Product Description

The HDPE Pipe is a versatile piping solution used in a variety of applications including sewerage and drainage systems, industrial effluent disposal systems, cable ducting, portable water supply, irrigation/agriculture, sprinkler systems, and gas distribution. Made of high-density polyethylene (HDPE), this pipe is known for its high tensile strength and stress-crack resistance, which prevents inching growth of cracks. It also has excellent resistance to UV and direct sunlight, leak-proof joints, and is lightweight and flexible, making it easy to install and transport. The smooth inner surface of the pipe ensures low frictional loss, providing excellent flow characteristics. It is weather-resistant and has excellent corrosion, abrasion, and chemical resistance, making it inert to most acidic and alkaline solutions. This pipe comes in a round shape and is available in diameters ranging from 20mm to 450mm. It has a standard length of 6/12/coils meters and is connected through butt fusion. It has a life span of 50 years and comes in black color.

FAQs of HDPE Pipe:

Q: What is HDPE Pipe used for?

A: HDPE Pipe is used for various applications including sewerage and drainage systems, industrial effluent disposal systems, cable ducting, portable water supply, irrigation/agriculture, sprinkler systems, and gas distribution.

Q: What are the benefits of using HDPE Pipe?

A: HDPE Pipe is known for its high tensile strength and stress-crack resistance, excellent resistance to UV and direct sunlight, leak-proof joints, lightweight and flexible, easy to install and transport, excellent flow characteristics, weather-resistant, and excellent corrosion, abrasion, and chemical resistance.
