UV Cable Duct Pipe for Solar Projects

Send Inquiry

Product Code : UVCableDuct

Brand Name : Elegant & VARUN

Price And Quantity

Minimum Order Quantity
500 Meter
Price Range
25.00 - 2500.00 INR

Product Specifications

Pressure
2.5kg/cm2 to 20kg/cm2 kgf/cm2
Application
Telecommunication , Solar Power Plant , Roff Top Solar Power Projects , Computer Network , Automatic Signaling , Railways Information Network. , Highways, Cable Service Providers, Broad Band networks ,Electric cable installation etc.

Feature
1)Reduction of stress on cable during installation. 2)Highly Flexible. 3)Impact Resistance. 4)Ultraviolet (UV) Resistance. 5)High Environment Stress Crack Resistance (ESCR). 6)Installation of Longer lengths made feasible. 7)Negotiations of cable movement through bends and deflections are easier.
Life Span
50 years

Product Type
HDPE Duct Pipe
Material
PE

Shape
Round
Standard
IS 4984:2016, IS 14333:1996

Length
6/12/Coils Meter (m)
Diameter
20mm to 450mm Millimeter (mm)

Color
Black , Blue , Green , Orange
Warranty
5 yrs

Product Description

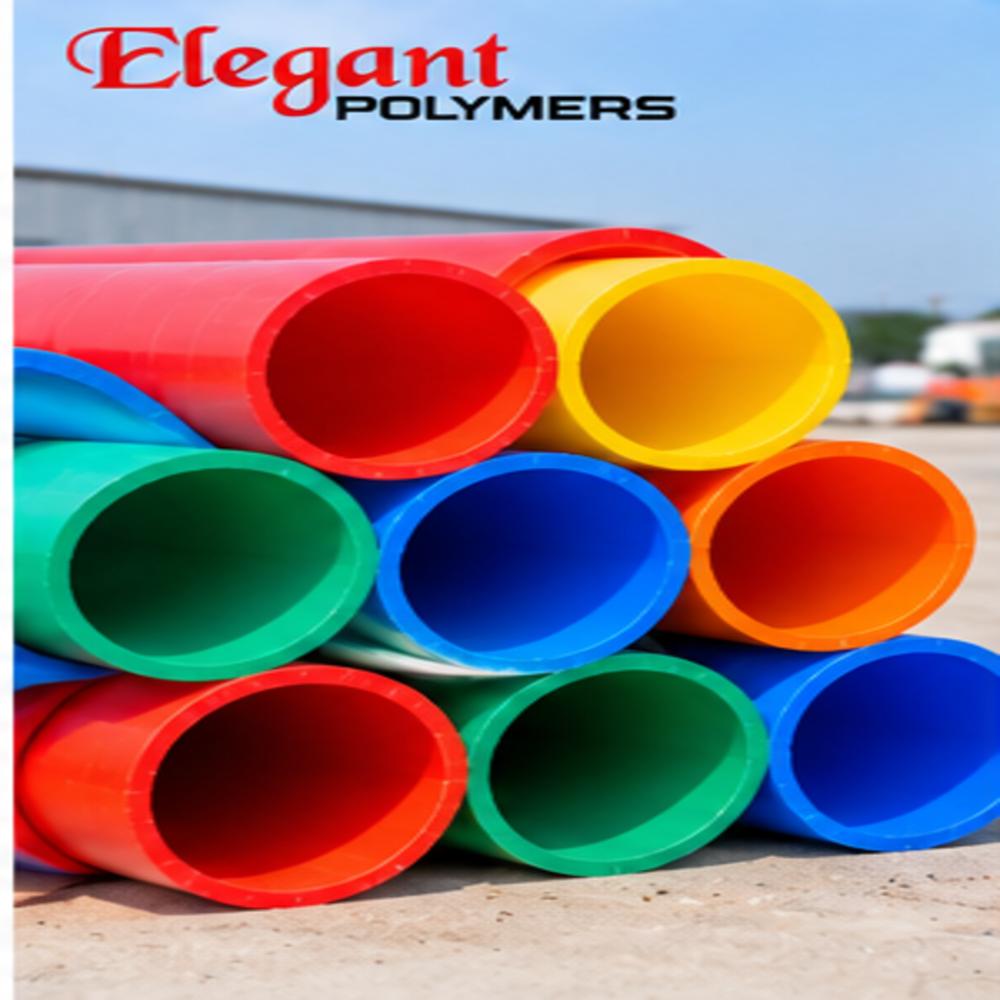

Elegant UV Cable Duct HDPE Pipe:

Elegant Cable Duct HDPE Pipe is a highly flexible and UV resistive pipe used for ducting Electrical,USB,OFC and other types of cables especially for Solar Power plant. These pipes are manufactured using superior quality PE compound so as to achieve high flexibility. Elegant Cable Duct Pipes are highly flexible as that they can be easily maneuvered around the corners and curves without use of fittings and thereby reducing cost and time of installation. Smooth inner surfaces helps in reducing Internal Co-efficient of Friction (ICF) between cable and pipes thereby allowing easy insertion of cable by drawing or blowing techniques. Elegant Cable Duct Pipes also comes with high resistance to Ultraviolet (UV) rays thereby increasing overall lifespan to well over 20 yrs. High UV resistance allows overhead cable installations reducing trenching cost. Pipes also contain co-extruded 4 eqvi-spaced continuous longitudinal strip of minimum 3mm width.

Application:

Telecommunication
Solar Power Plant
Roff Top Solar Power Projects
Computer Network
Automatic Signaling
Railways Information Network.
Highways
Cable Service Providers,
Broad Band networks
Electric cable installation etc.

Advantages:

Reduction of stress on cable during installation.
Highly Flexible.
Impact Resistance.
Ultraviolet (UV) Resistance.
High Enviroment Stress Crack Resistance (ESCR).
Installation of Longer lengths made feasible.
Negotiations of cable movement through bends and deflections are easier.
Reduction of number of joints and minimizes number of splices.
Faster and easy installation of cable with lesser man power.
Reduction of overall cost of installation, maintenance and future upgrades.

Dimensions:

DUCT SIZE	OUTER DIA	OVALITY (MAX)	WALL THICKNESS	STANDARD LENGTH
32/26	32 - 0.3	1.3	3.0 - 0.2	250/500/1000 Mtrs.
40/33	40 - 0.4	1.4	3.5 - 0.2	250/500/1000 Mtrs.
50/42	50 - 0.5	1.4	4.0 - 0.3	250/500/1000 Mtrs.
63/57	63 - 0.6	1.5	3.6 - 0.6	6/12/50/100 Mtrs.
75/65	75 - 0.7	1.6	4.3 - 0.7	6/12/50/100 Mtrs.
90/79	90 - 0.9	1.8	5.1 - 0.8	6/12/50/100 Mtrs.
110/96	110 - 1.0	2.2	6.3 - 1.0	6/12/50/100 Mtrs.
